UTLTV? Utility Lawn Tractor... Vehicle... Thing. LOL

I recently picked up this '89 Lawn Boy LT12 for a song. 12hp Briggs L-Head, Peerless 900 series. Fixed the mangled starter, tore out the BS safety switches and wiring, new battery, and it lit right up. Have a slight bit of carb tweaking to do, but nothing out of the ordinary. I plan to make this thing fairly utilitarian. Cargo-carrying capacity, ATV tires, winch, lighting, a canopy (keep the rain off the wife) maybe a windshield. Bumpers, towing frame, couple gauges, toolbox, jerry can rack, etc. I'll post a pic of it as I got it, to begin with. It won't take much to bring you up to speed, I'm just at the beginning of this project.

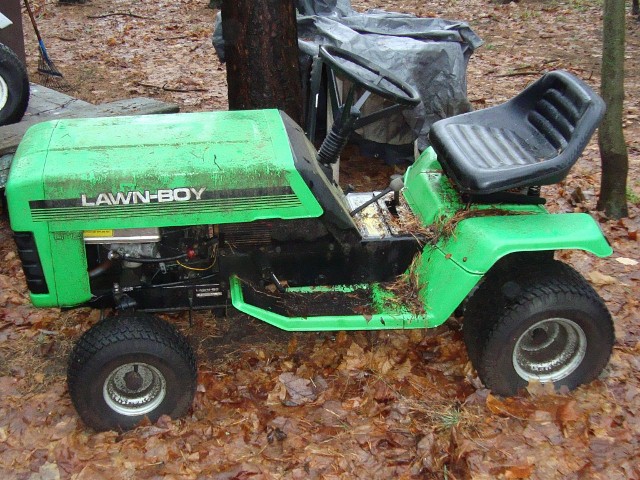

LawnBoy UTLTV aka MULE Tracto11


Last edited by Doc Sprocket on October 13th 2013, 9:29 am; edited 1 time in total
Back to top Go down
richie thomas
Veteran Member
richie thomas
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 29
Join date : 2011-08-04
Points : 6378
Posts : 1434
Location : east dublin georgia

LawnBoy UTLTV aka MULE Empty
PostSubject: Re: LawnBoy UTLTV aka MULE   LawnBoy UTLTV aka MULE Icon_minitimeApril 21st 2013, 10:23 pm

looks like a good start man, ive got alot of tinted plexiglass, ive been debating on building a cab for the winter
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5481
Posts : 1070

LawnBoy UTLTV aka MULE Empty
PostSubject: Re: LawnBoy UTLTV aka MULE   LawnBoy UTLTV aka MULE Icon_minitimeApril 21st 2013, 10:26 pm

richie thomas wrote:
looks like a good start man, ive got alot of tinted plexiglass, ive been debating on building a cab for the winter
Yeah iv always wanted to build a cab or somsort of thing for my mower.
Back to top Go down
Doc Sprocket
Site VIP
Doc Sprocket
Site VIP

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2016
1st Place Build-Off Winner 2016

Age : 51
Join date : 2013-04-21
Points : 7296
Posts : 2914
Location : Ontario Canada

LawnBoy UTLTV aka MULE Empty
PostSubject: Re: LawnBoy UTLTV aka MULE   LawnBoy UTLTV aka MULE Icon_minitimeApril 22nd 2013, 5:18 am

A cab would be cool. Buy when I say "canopy", picture a bimini top for a boat, or something like it. I plan on bending up a couple hoops from 3/4" EMT and the wife's got some of the neat waterproof camo fabris stuff.

Sparing all the little details, this is where I'm at as of last night. I've installed an automotive volt meter and temp gauge, 145/70-6 ATV style front tires, and Kenda Scorpion 22x11-8 rears. I took it for a romp throught the mud and scrub and I was pretty impressed with the traction even with the open differential.

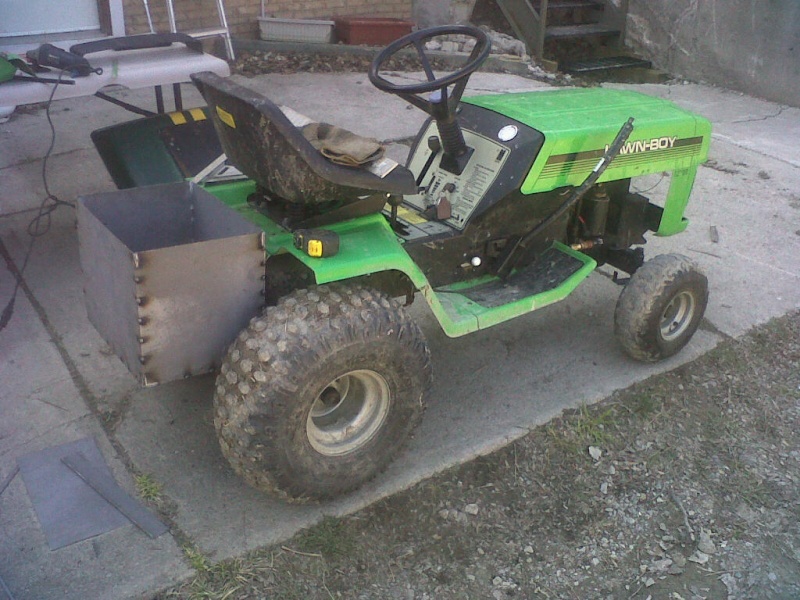

I decided I wanted a box or trunk or try or something. I hacked off the fenders flush with the back of the frame, and tossed together a box out of 16ga sheet steel. To extend and compete the fenders, I cut up a steel trailer fender and narrowed the pieces. here's what it looks like as of last night.

LawnBoy UTLTV aka MULE Barebo10
LawnBoy UTLTV aka MULE Box10
LawnBoy UTLTV aka MULE Box210
