| Hello All-Terrain Lawn Tractor Community, This thread will detail the build of my 1986 Craftsman Model No. 917.255732 (11 HP, 5 speed, 38" deck). My current goal in life is to start and complete projects with something that resembles focus. Hopefully posting on this forum will help me stay focused on this project and allow others to prod me when I have not been active. The desired outcome of this project is a quiet and comfortable tractor that is at home pulling things around in the woods but also has enough capabilities to run the ATV trails while still looking fairly stock. The design features that support the desired outcome are: ATV Tires, Wheels and Hubs - a set of tires and wheels from a Yamaha Raptor 90 (tires are all 18" and the wheels are 8" so they do not look gigantic on the tractor like "regular" ATV tires), front hubs with drum brakes from a Eton Viper 90R, rear billet aluminum hubs from BMI Karts. Full Independent Suspension - for comfortable woods navigation and proper all-terrain vehicle functionality, double A-arms all around, made of Aluminum due to to reduce unsprung weight and force me to finally become proficient at TIG welding aluminum. Electric Motor Conversion - keeps it quiet so that I can use it anytime I want without bothering the neighbors and does not disrupt the nature back int the woods, this will be my first "full size" electric vehicle conversion (I have done it on an Associated MGT 1/8 scale nitro monster truck, I also own an all electric Nissan LEAF), dual e-bike hub motors in the frame directly driving out to the wheels with universals, removing the gas engine from the front will give me that space that is needed for the front suspension and steering. Since this type of project takes some time, it is being broken up to different stages: Stage 1 - Remove cutting deck and related components, build a custom muffler to quiet the gas engine down, use deck drive pulley for main drive pulley to speed it up a little, get nicer seat, adapt ATV tires to current transaxle and front axle, throttle pedal, maybe lock the transaxle. Stage 2 - Purchase and test the e-bike hub motors, design the new frame and suspension (with 3D CAD - SolidWorks), get custom adapters machined for the motor to the universal joint. Stage 3 - Build everything I designed, cut up the tractor, put it all back together. Here are some pictures of the tractor as received (May 30, 2015) from my neighbor Charlie for the price of moving it from his driveway: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150511](https://i.servimg.com/u/f68/19/36/01/90/20150511.jpg) ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150512](https://i.servimg.com/u/f68/19/36/01/90/20150512.jpg) ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150513](https://i.servimg.com/u/f68/19/36/01/90/20150513.jpg) ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150514](https://i.servimg.com/u/f68/19/36/01/90/20150514.jpg) | |
| ![Go down](https://2img.net/i/empty.gif) | | redlinemotorsportts Moderator
![redlinemotorsportts](https://2img.net/u/2812/37/66/46/avatars/749-8.png)
![Moderator Moderator](https://i.servimg.com/u/f86/19/98/54/71/mod212.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 27 Join date : 2013-03-18 Points : 7409 Posts : 3131 Location : raleigh nc
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion November 14th 2015, 12:43 pm | |
| This seems crazy cool. I have seen a electric racing lawn mower on YouTube and seemed to do ok.
I'm crazy about suspension, and love seeing new ideas. Plenty of people have done front a arms, wether single or double a arm, or from the front frame of a quad. Rear will be interesting, keeping the arms long ish but not having the rear to wide to navigate trails.
Find out what rear end you have, it's probably a foote or peerless 920/930. Peerless 820s are by far the strongest vertical input shaft transaxles, still aluminum case. I'd hate to see a beautiful design wrapped around a axle you'll have to always change because it keeps breaking. Maybe truss it with your aluminum capabilitys. | |
| ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion November 16th 2015, 10:51 pm | |
| When it becomes full suspension, it will also be converted to direct drive electric motor powered, so I will not have to be concerned about flimsy transaxles. We will see if transaxle in it has holds up with a little more speed and a lot more traction with the ATV tires. I am actually nearing completion with Stage 1 from my original post and will try to catch up to where I am now so the build can be in real time. I thought I should add some legitimacy here in the beginning to what I plan on doing since it seems pretty far fetched on the surface. Here are some pictures of my first Baja SAE car (#41) that I built in March 2006 when I was in school for Mechanical Engineering. This car was completely spearheaded (I hate this business buzzword, but it is true) by me when I was a 2nd year student with the intent on beating the Senior's Team fancy new car at the competition, which I did by a few places with a team of a few other students that also have never built something like this. This car was built entirely of old "junk" parts from the shop except for new steel tubing for the frame/roll cage. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 2007-010](https://i.servimg.com/u/f68/19/36/01/90/2007-010.jpg) It sure did jump well with the unmodified horizontal shaft 10 HP Briggs OHV (the competition required engine) a little behind the rear axle. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 2006-010](https://i.servimg.com/u/f68/19/36/01/90/2006-010.jpg) ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 2007-110](https://i.servimg.com/u/f68/19/36/01/90/2007-110.jpg) The next post will have some pictures of my Senior Design Baja SAE car and then back on tractor (see what I did there, ha ha). | |
| ![Go down](https://2img.net/i/empty.gif) | | donaldcon Member
![donaldcon](https://2img.net/u/2812/37/66/46/avatars/2291-72.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 38 Join date : 2015-04-28 Points : 3883 Posts : 397 Location : Roseville, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion November 17th 2015, 6:21 pm | |
| Back to the Craftsman tractor. It took me until August to finally get the cutting deck off, add a 1/4 bottle of slime to each tire, air them up, and borrow the battery from the Honda HT3813 (the lawn mower that actually mows the lawn). ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150810](https://i.servimg.com/u/f68/19/36/01/90/20150810.jpg) The brake was not functioning, so that was the first thing to mend before I could put it to work. It took soaking with penetrating oil, waiting, and gingerly tapping and prying; but it came apart, got cleaned up, lubed, and reassembled. Before the brake came off: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150811](https://i.servimg.com/u/f68/19/36/01/90/20150811.jpg) The first layers of 30 years of oil grime started to get scrapped off. Yes, that belt was used without issues for the first few months of light usage. This when I learned to not tip the tractor towards the carburetor, it turns out that oil gets out through the carb and leaks on the ground. Then it is no fun to clean out the air filter and get the oil burned out of the float bowl. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150812](https://i.servimg.com/u/f68/19/36/01/90/20150812.jpg) First day of usage moving logs from trees I just had cut down. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150813](https://i.servimg.com/u/f68/19/36/01/90/20150813.jpg) Since this tractor is destined to become all-terrain the stump grinding mounds needed to be climbed. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20150814](https://i.servimg.com/u/f68/19/36/01/90/20150814.jpg) | |
| ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion November 19th 2015, 9:47 pm | |
| October 24, 2015 (I am catching up to the present): While using the Craftsman as my main trailer pulling tractor, the extremely loud nature of it finally got to me. The perforated tube was just rattling around inside the can. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151010](https://i.servimg.com/u/f68/19/36/01/90/20151010.jpg) I figured it was time to build a muffler using the stainless pot scrubber method I read about somewhere. The pot scrubbers were not as open as I would like, but were the only kind available when I had my wife pick them up when she was at the store. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151011](https://i.servimg.com/u/f68/19/36/01/90/20151011.jpg) The pot scrubbers ended up spreading out ok. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151012](https://i.servimg.com/u/f68/19/36/01/90/20151012.jpg) The only hi-temp paint I had was GM Blue so that what happened. A little over spray occurred when I touched it up after installing. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151013](https://i.servimg.com/u/f68/19/36/01/90/20151013.jpg) It did not get as quiet as I was hoping for, but there are still things to move, this time 1972 Honda CL350 parts without a title. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151015](https://i.servimg.com/u/f68/19/36/01/90/20151015.jpg) First deep woods romp to the back of my property. The few pictures I took were all a little blurry, sorry. ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151016](https://i.servimg.com/u/f68/19/36/01/90/20151016.jpg) Next up is the engine pulley modification which I have not yet tested, but it looks good and should work fine. | |
| ![Go down](https://2img.net/i/empty.gif) | | Muddy Sunday New Member
![Muddy Sunday](https://2img.net/u/2812/37/66/46/avatars/2140-70.jpg)
![New Member New Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2015-01-08 Points : 3546 Posts : 11 Location : Georgia
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | MatthewD Veteran Member
![MatthewD](https://2img.net/u/2812/37/66/46/avatars/2022-64.jpg)
![Veteran Member Veteran Member](https://i.servimg.com/u/f62/19/56/75/89/g510.png)
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant
Age : 23 Join date : 2014-11-16 Points : 5679 Posts : 1993 Location : Northern Ireland
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion November 26th 2015, 1:32 pm | |
| - Muddy Sunday wrote:
- I like the muffler idea. Ive been wanting a more stock exhaust on my mower to replace the straight pipe exhaust I currently have. Cool tractor too ive always wanted a square body craftsman.
- MatthewD wrote:
- Nice, Liking the muffler modification! Can't wait to see how the suspension works out

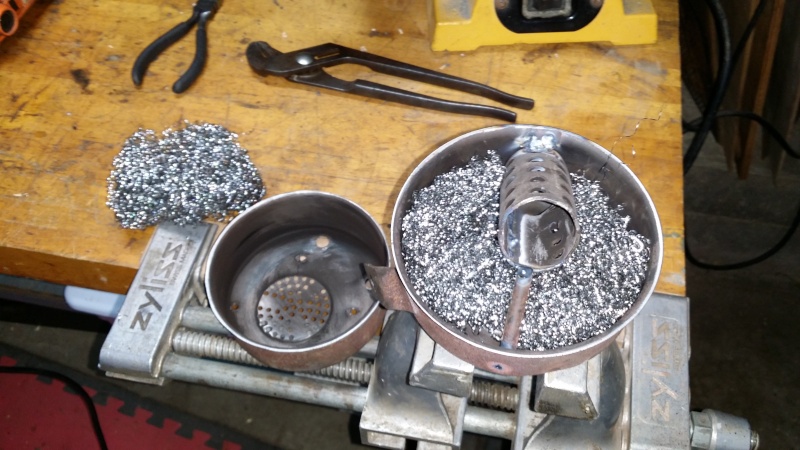

Thanks guys, I am glad you like the muffler. A lifetime of dealing with the police for loud mini bikes, cars and trucks will make you like things that are quiet, plus I do not want to annoy my older neighbors with whom I am friends with. I like my machines silent, but deadly! Here is the next step to make the gas engine quieter: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151111](https://i.servimg.com/u/f68/19/36/01/90/20151111.jpg) When I was looking for a lawn tractor when I bought my house a few years ago, I was sure I was going to end up with an 80s square body Craftsman, but an old work friend called me up and offered to sell me his Honda HT3813 for cheap so that was that. The Honda is absolutely amazing as a lawn tractor with its inline liquid cooled (which makes it quieter) 2-cylinder and clutch dampener for smooth gear engagements. I was over talking with my neighbor Charlie this spring and he mentioned that he was going to get rid of his lawn tractor because it was a hunk of crap (the Craftsman). I never saw it much because it only sat in his driveway under a small tarp. As soon as he said the price was free, we put air in the airs and drug it next to my sharn (shed-barn). My "new" front shocks came in earlier this week, I am no where close to getting them on the tractor. The sad part is that the long 18.4" shocks will fit just fine in the front because of the tall hood, but the rears will have to be shorter due to the low seat and rear fenders. The full suspension components are currently being purchased so that they can be 3D modeled and the suspension designed. Here is a teaser of front shocks: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151112](https://i.servimg.com/u/f68/19/36/01/90/20151112.jpg) | |
| ![Go down](https://2img.net/i/empty.gif) | | Dustin M. Member
![Dustin M.](https://2img.net/u/2812/37/66/46/avatars/2420-55.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2019 Build-Off Entrant
2019 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant
Age : 38 Join date : 2015-11-07 Points : 3281 Posts : 43 Location : Cleveland, OH
![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion Empty](https://2img.net/i/empty.gif) | Subject: Re: Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion June 4th 2016, 11:37 pm | |

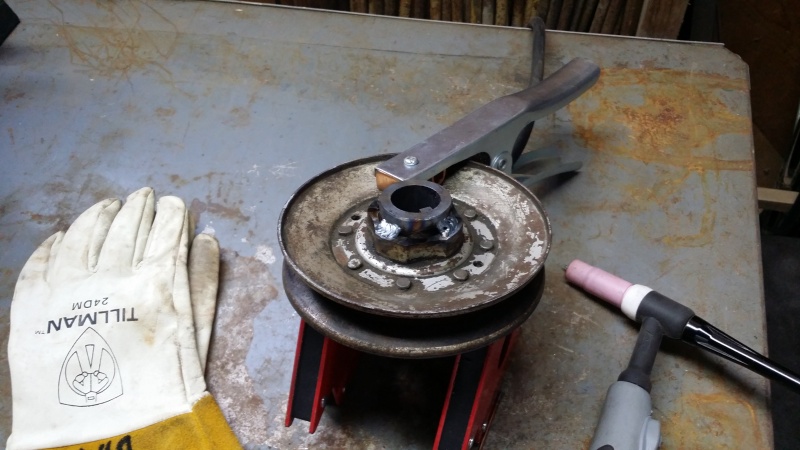

| Time for the deck pulley to become the engine pulley and make this thing slightly quicker. This happened back in November 2015. Yank the pulley off: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151110](https://i.servimg.com/u/f86/19/36/01/90/20151110.jpg) Put on your PPE (personal protective equipment) when getting ready to do a large amount of grinding: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151113](https://i.servimg.com/u/f86/19/36/01/90/20151113.jpg) Separate the old engine pulley from the deck pulley (soon to be new engine pulley): ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151112](https://i.servimg.com/u/f86/19/36/01/90/20151112.jpg) Carefully cut away the old engine pulley: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151114](https://i.servimg.com/u/f86/19/36/01/90/20151114.jpg) Mount the center section of the engine pulley to a piece of threaded rod using nylon locking nuts to mostly center the center section due to the nylon locking nuts having a small rounded top part that fits in the mount hole. Chuck up the thing in a drill and smooth it out with the bench grinder until it fits nicely in the deck pulley bore: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151115](https://i.servimg.com/u/f86/19/36/01/90/20151115.jpg) Throw four small weld beads on there to keep the "new" pulley from falling off. It was not fully welded to facilitate easier removal in case I ever put something different on there: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151116](https://i.servimg.com/u/f86/19/36/01/90/20151116.jpg) Take a nice picture in the fall sun on a log after giving it a coat of clear paint: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151117](https://i.servimg.com/u/f86/19/36/01/90/20151117.jpg) Slop the pulley back on the engine shaft with a little Loctite on the bolt. Loctite'ing every bolt and nut (that is not cotter pinned, safety wired, or nylon lock nutted) is a good habit from building the SAE Baja cars. Things coming loose during a race does not help to make laps or keep you moving out on the trail!: This is the belt I purchased from Amazon for $19.99. I believe the stock size is 90". This 2" longer belt seems to work good: ![Dustin's 1986 Craftsman Woods Tractor - Full Suspension, Electric Conversion 20151119](https://i.servimg.com/u/f86/19/36/01/90/20151119.jpg) The tractor is still pretty slow, but good enough for going through the woods and hauling stuff around. The clutch arm needs to be moved back an inch or so that the parking brake can function again. Currently the clutch pulley can hit the engine pulley if it is pushed in decently hard, it does not hurt anything, but it is not proper and makes a metal-on-metal scary noise. | |
