So I thought I'd make a new thread on my trailers so I wouldnt have to post them on my wheel horse thread!

So this is one of my trailers that me and my dad made probably 6 or 7 years ago.....not to sure  scratch But it's made out of aluminum C channel and this aluminum parframe (made by parker) it could also be 80/20 frame (made in Germany). I'm not sure cause both look identical. But its completely bolted together and I'll make a spec list with the dimensions and everything, will also show pictures of how it's all constructed.
My Homemade Trailers 20191218
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJuly 27th 2020, 6:10 pm

Specs
-Mostly made out of aluminum
-Around 23.5 inches wide by around 44.25 inches long not including the tongue.(hard to measure because nothing is straight anymore lol!)
-Total length is 75 inches
-Total width is 32 inches
- C channel is 1 1/2 by 3
-Parframe is 1 1/2 by 1 1/2
-Tires are 4.10/3.50-4 china somethin another's
-Wheels ride on 5/8s bolts
-Sits about 6 1/2 inches off the ground


Last edited by BlakeGroce on July 27th 2020, 6:56 pm; edited 1 time in total
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJuly 27th 2020, 6:43 pm

So we've had these sides to a 4 wheel cart (like the ones you see at flower shops and stuff) laying around for awhile and turns out they fit this trailer almost perfectly. Dad got them from some guy at work who made a welding cart out of it so he didnt need the sides. Says gorilla carts on it so look it up if your curious.
My Homemade Trailers 20200732

I just drilled holes in the side of them and used some wood screws with the hex heads to hold them on.
My Homemade Trailers 20200733


Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJuly 27th 2020, 6:55 pm

One neat thing is that the sides all latch together so you can always take it apart.
My Homemade Trailers 20200734

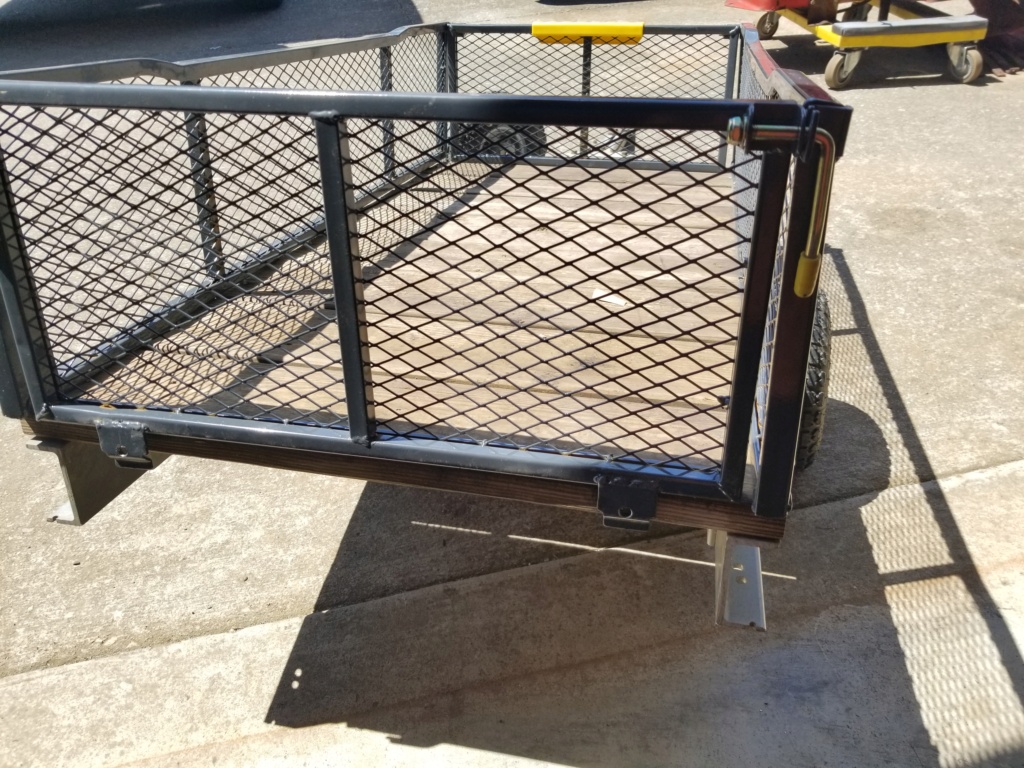

Only issue is that I dont want to bolt the tailgate down so that I can remove it if needed. So I need to figure out a way to keep it from flopping around.
My Homemade Trailers 20200735
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 7142
Posts : 2907
Location : New Jersey USA

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJuly 27th 2020, 9:58 pm

That worked out pretty good. Nice!
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJuly 27th 2020, 11:43 pm

So I thought about it for awhile and I thought about using hitch pins with rods, then I thought about just one big pin, then I thought about hinges. But all of that was just too complicated so I went with the kiss method! (keep it simple stupid)

So I found these wrenches that you get when you buy things that need to be assembled. Let's be honest who really uses the wrenches it comes with anyways???
My Homemade Trailers 20200738

Then I copied the bend it already had in it on the other side.
My Homemade Trailers 20200737

Then with some nuts as spacers I had some holder inner things so my tailgate doesn't fall off!  My Homemade Trailers 2731072446
My Homemade Trailers 20200739
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeDecember 28th 2020, 4:21 pm

Well I've been using the trailer my neighbor gave me alot! We're in the process of burying pipe for the electric to run through to the garage and since it's the middle of winter everything is just a slop pile. So since nothing else can make it through the yard without getting stuck I've been the one who has to haul everything back there...which I dont mind Very Happy The trailer definitely comes in handy and the dump feature is nice to have!
My Homemade Trailers 20201220
My Homemade Trailers 20201219
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 7142
Posts : 2907
Location : New Jersey USA

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJanuary 29th 2021, 8:59 am

Nice to see a couple of "at work" pics. I might have to finally make my off road trailer that I've wanted to make for years. Just can't get a chance to do it. We don't even have a garden cart for stuff at the moment. The junk one we had was kinda beat and we junked it.
Back to top Go down
CraftsmanQuad19
Veteran Member
CraftsmanQuad19
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2019 Build-Off Finalist
2019 Build-Off Finalist

Age : 24
Join date : 2016-04-12
Points : 5957
Posts : 2643
Location : Indiana

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeJanuary 29th 2021, 10:55 pm

Haha nice man! I pretty much just use my trailer for hauling passengers lol
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeFebruary 2nd 2021, 12:50 am

mr.modified wrote:
Nice to see a couple of "at work" pics. I might have to finally make my off road trailer that I've wanted to make for years. Just can't get a chance to do it.

You should definitely build it when you get the time! I've always wanted to see and good off road trailer build, plus they come in handy too. I've always thought those 4 wheel atv timber trailers are pretty neat how they flex without suspension.
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeFebruary 2nd 2021, 12:52 am

CraftsmanQuad19 wrote:
Haha nice man! I pretty much just use my trailer for hauling passengers lol

lol! Might as well!
Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2496
Posts : 469
Location : Richmond Ky

My Homemade Trailers Empty
PostSubject: Re: My Homemade Trailers   My Homemade Trailers Icon_minitimeNovember 13th 2021, 2:33 pm

I've had some free time here and there to do stuff so I've been working on building a new dump bed for the bigger trailer (the red one). I'm gonna beef it up quite a bit by making a frame out of square tubing and then have a wooden floor and sides just like a car trailer. This way when the wood rots out again I wont have to re-make the entire box I'll just have to replace the boards.

I've already gotten the old bed disassembled and I've got the frame all welded together.

My Homemade Trailers 20210911

 Now I'm going to have to weld in some cross braces to mount it the lower section of the trailer that I'm reusing. I want to make it bolt on like it was originally so incase I have to service anything or want to upgrade the bottom half later on, I can just unbolt the box and remove it.
