Anything Wrong? Ackerman Steering

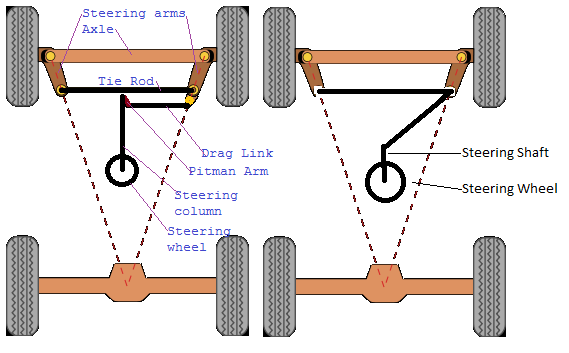

So the picture on the left is one I found on a website and the one on the right is a modified version of what I plan to do, can you see any problems with it?
Thanks

My amazing skills in paint

Nope. That's correct.

Ackerman is right. Direct steer won't work. Need another connecting spot on your king pin for drag link. Should be a good diagram on here somewhere.

Doc Sprocket wrote:

Nope. That's correct.

 WHAT DOC IS WRONG.

"OH boys! look at the Ackerman'd onto it.. Ackerman's"

CornShuck4CE wrote:

Doc Sprocket wrote:

Nope. That's correct.

 WHAT DOC IS WRONG.

Who the hell said I'm wrong? I do Ackermann on all my steering systems...

Wait what? Now i'm just confused.
Is this the image?

Doc Sprocket wrote:

CornShuck4CE wrote:

Doc Sprocket wrote:

Nope. That's correct.

 WHAT DOC IS WRONG.

Who the hell said I'm wrong? I do Ackermann on all my steering systems...

Easy doc. I ment on the direct steer.

CornShuck4CE wrote:

Doc Sprocket wrote:

CornShuck4CE wrote:

Doc Sprocket wrote:

Nope. That's correct.

 WHAT DOC IS WRONG.

Who the hell said I'm wrong? I do Ackermann on all my steering systems...

Easy doc. I ment on the direct steer.

Oh, I'm fine. I just completely fail to understand what's supposed to be wrong there. Y'all gotta remember- I do go karts. Go karts= direct steer. I factor in Ackermann, KPI and caster when I do them. But unless I wasn't paying full attention, I didn't see anything wrong there.

So is there anything wrong?
Any suggestions?

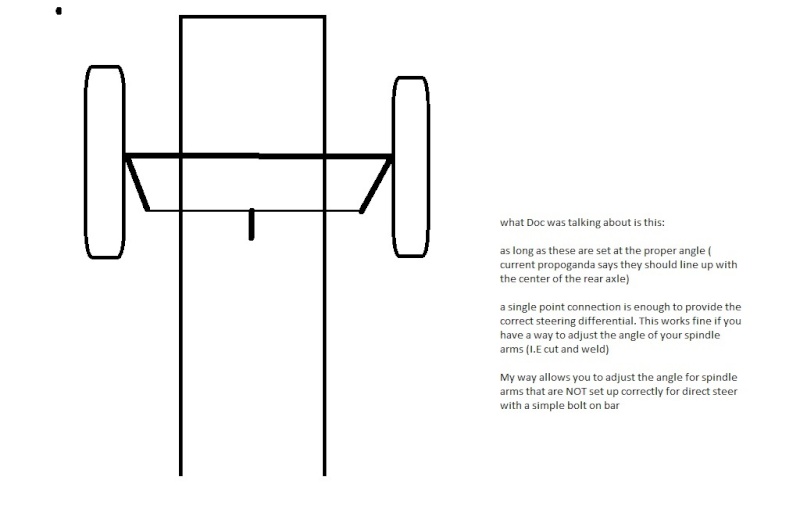

Thunderdivine wrote:

They are commenting on the black lines (linkages). All linkages should when possible be 90 degrees on another. That way you get equal throw left and right, right?

The diagram works fine in the original configuration. Basic go kart stuff. I'm stumped here. I see nothing wrong.

Doc Sprocket wrote:

Thunderdivine wrote:

They are commenting on the black lines (linkages). All linkages should when possible be 90 degrees on another. That way you get equal throw left and right, right?

[pic]

The diagram works fine in the original configuration. Basic go kart stuff. I'm stumped here. I see nothing wrong.

What, the first diagram OP drew? There's a lot wrong with that one. Steering backwards, don't get full motion range.

I guess that's a matter of perspective. If you're silly enough to take it as a scale technical drawing... Maybe. Maybe not.

Doc Sprocket wrote:

I guess that's a matter of perspective. If you're silly enough to take it as a scale technical drawing... Maybe. Maybe not.

Wait.

What?

Im not sure what your referring to. Like, at all lol.

Ackerman was fine. That direct steer was way off. If I get time, I'll post a pic.

ok. I polished things a bit, and clarified some stuff. Really, it's the same thing, just interpreted. Anybody?

Mine on the left, original on the right.

So...you guys get the thing built yet?

Okay, finally got some time to post what I think needs to happen.


On left, is a simplified version of what Doc posted, what I would call go-kart/ATV steering.  Two tie rods connected to one or two pitman arms in the middle.  Works great, but usually we have an engine in the way.

On the right is what works for front engine mowers.  Steering column is not shown, because it is straight up and down for this simple drawing.  It uses an extra connection to the spindles to get the steering hooked up.

Thanks Doc and stretch that was just what I needed, Now I can get on with making it

I have the steering setup on the left for the massey I absolutely love it it is a really tight setup only thing Id change is the ratio but thats because I have big tires lol

kieranruffell wrote:

Thanks Doc and stretch that was just what I needed, Now I can get on with making it

Fantastic... Good luck!
